三沛有限公司

SUNBAY MACHANICAL Co., Ltd.

email : sunbay168@gmail.com
Tel : 0222062243  Fax : 02 22062241

聯絡人：蔡忠毅 mobile: 0922677110

Category: Uncategorised
  鑄鋼珠可分為鑄鋼珠(Cast iron shot)、及不銹鋼珠(stainless shot)二種。
  一般鋼珠多為鑄鋼珠包含不銹鑄鋼珠是最為廣泛使用的一種珠擊介質。鑄鋼珠是由霧化熔融的鋼液製造而成的，然後進行熱處理和分篩而得的材料。鑄鋼珠及不銹鋼鑄鋼珠多為研掃系統的珠擊機所使用，多用於噴洗大、中、小型鑄鋼、鑄鐵、型鋼、鋼管、鋼板，用來消除鑄件 (人工時效及表面清洗)、焊接件及鍛件 (不銹鑄鋼珠多用於鋁壓鑄件及非鐵系的鍛件) 的有害的熱應力，增加工件之疲勞強度及耐磨度。




鑄鋼珠

使用鋼珠的好處是它有較長的使用壽命相對於玻璃珠及陶瓷珠，製造簡單、容易取得，高比重可以很快的達到所須的強度，在性價比上也是其它形態的鋼珠所不能比的，其缺點是球形的形態較難為持，相對於高碳鋼珠及線段珠其粒徑尺寸範團較大，使用壽命不如高碳鋼珠及線段珠來得長。非鐵系的材料要用不銹鑄鋼珠來加工。

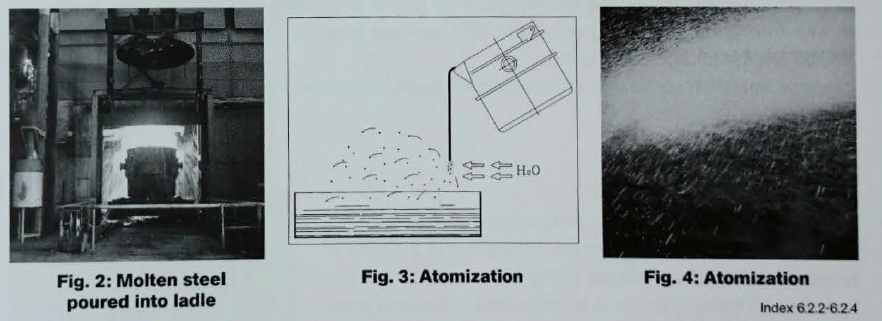

鑄鋼珠的生產流程
鑄鋼珠的生產流程



不銹鋼鑄鋼珠

不銹鋼鑄鋼珠生產方式和鑄鋼珠一樣，但其使用壽命比鑄鋼珠來得長，粒徑尺寸區間和鑄鋼珠一樣範圍較廣，球形的形態多樣性，價格比鑄鋼珠高但低於高碳鋼及線段珠，適用於非鐵系的工件上。

Material Alloyed Chrome-Nickel-Steel

Standard / specification AMS 2431-4, SAE J444

Sizes S10,S20,S30,S40,S60,S100,S200,S300

Grain shape Spherical

Hardness 30 to45 HRC

Packaging 25 kg bag on Euro pallet up to 1000 kg, big bag, drum

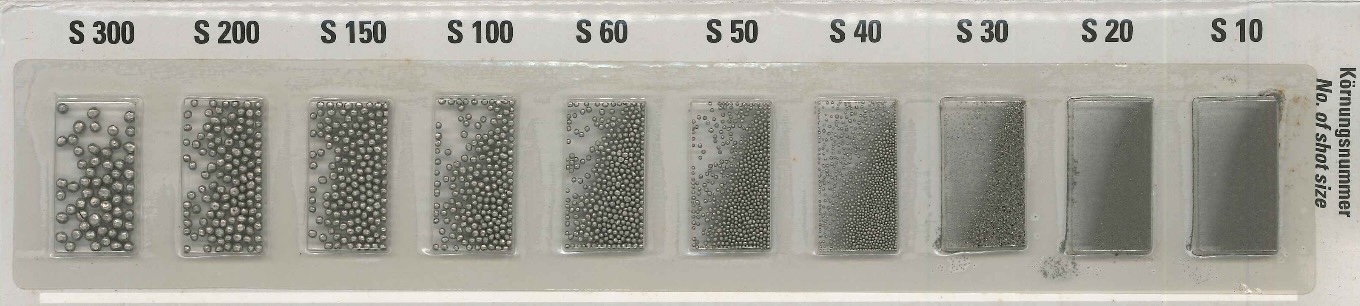

鑄鋼珠及不銹鋼珠大小尺寸分類
